| 輸入地址 | 輸出地址 | ||||
| SD | X0 | M1 | Y0 | A | Y4 |
| S1 | X1 | M2 | Y1 | B | Y5 |
| S2 | X2 | MZ | Y2 | C | Y6 |
| SIN4 | X3 | MF | Y3 | YU1 | Y7 |
|

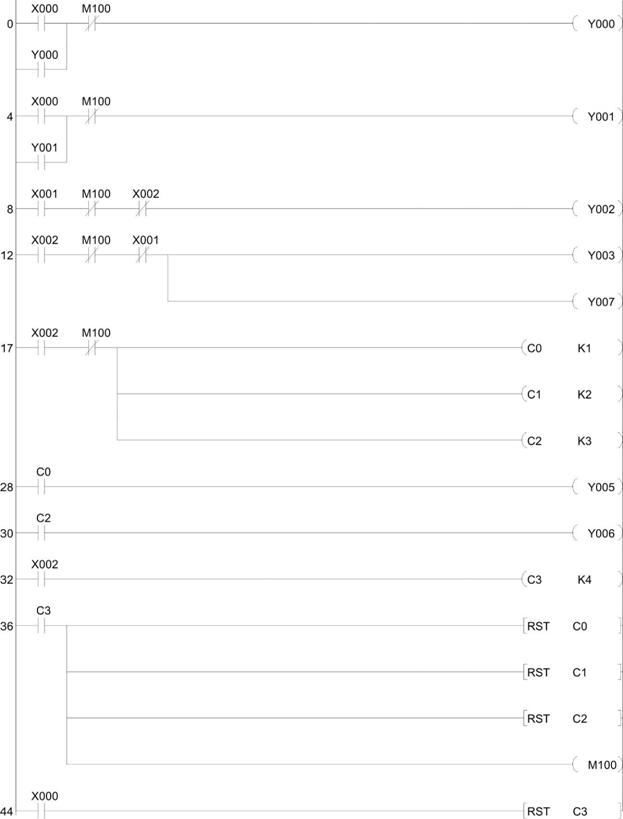

0 LD X000 1 OR Y000 2 ANI M100 3 OUT Y000 4 LD X000 5 OR Y001 6 ANI M100 7 OUT Y001 8 LD X001 9 ANI M100 |
10 ANI X002 11 OUT Y002 12 LD X002 13 ANI M100 14 ANI X001 15 OUT Y003 16 OUT Y007 17 LD X002 18 ANI M100 19 OUT C0 K1 |
22 OUT C1 K2 25 OUT C2 K3 28 LD C0 29 OUT Y005 30 LD C2 31 OUT Y006 32 LD X002 33 OUT C3 K4 36 LD C3 37 RST C0 |
39 RST C1 41 RST C2 43 OUT M100 44 LD X000 45 RST C3 |
| SD | X0 |

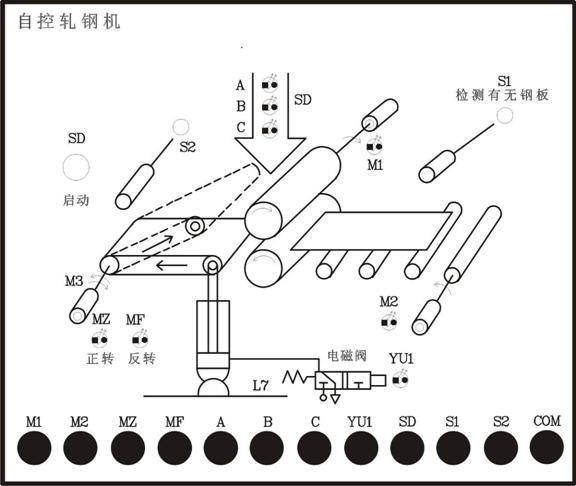

可 編 程 控 制 器 實 驗 臺 |
Y0 | M1 | |
| S1 | X1 | Y1 | M2 | ||
| S2 | X2 | Y2 | MZ | ||
| Y3 | MF | ||||
| Y4 | A | ||||
| Y5 | B | ||||
| Y6 | C | ||||
| Y7 | YU1 | ||||
|
＋24V |
|||||
| COM0-COM5 | |||||
